Merge and preserve layer properties

Develop
1

Hello,
If you add a property to a layer and merge this layer with a layer below it, the property is gone.

How can you ensure that this is preserved?

Greetings
DAB

2

What kind of properties do you mean?
Can you show somw examples?

1 Like
3

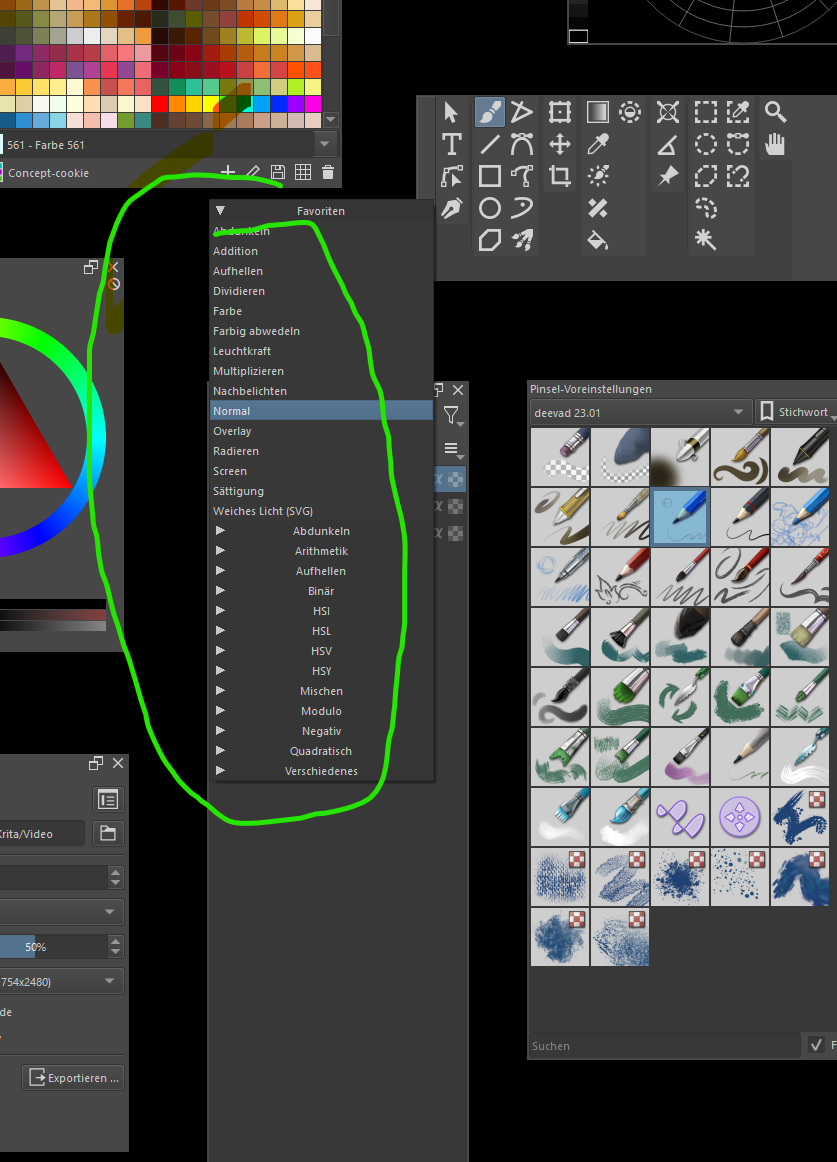

this =)

Screenshot 2023-12-16 233253
Screenshot 2023-12-16 233253837Ă—1162 224 KB

4

You mean blend modes? The problem with keeping the blend mode is you will get a totally different result if it keeps the blend mode setting. It does keep it when the layers have same blend mode, but even that is probably not the best behavior as the merged result can end up changing

4 Likes
5

One way to tackle this problem is to use the script to perform your operations.

The way I would implement it would be such that:

  1. Store the blending mode for the selected layer into a variable
  2. Perform the “merge with layer below” action
  3. Apply stored blend mode to selected layer
6

sorry ^^ I have no idea about that^^…it’s a shame

7

The scrip such as this should do the trick:

from krita import Krita, Node
from PyQt5.QtCore import QTimer

timer = QTimer()
timer.setInterval(150)
timer.setSingleShot(True)

def set_blend(mode):
    doc = Krita.instance().activeDocument()
    node: Node = doc.activeNode()
    node.setBlendingMode(mode)

def run():
    doc = Krita.instance().activeDocument()
    node: Node = doc.activeNode()
    bm = node.blendingMode()
    node.mergeDown()

    timer.timeout.connect(lambda x=bm: set_blend(x))
    timer.start()

run()

You can use 10 scripts or and Actuator to make it more user-friendly

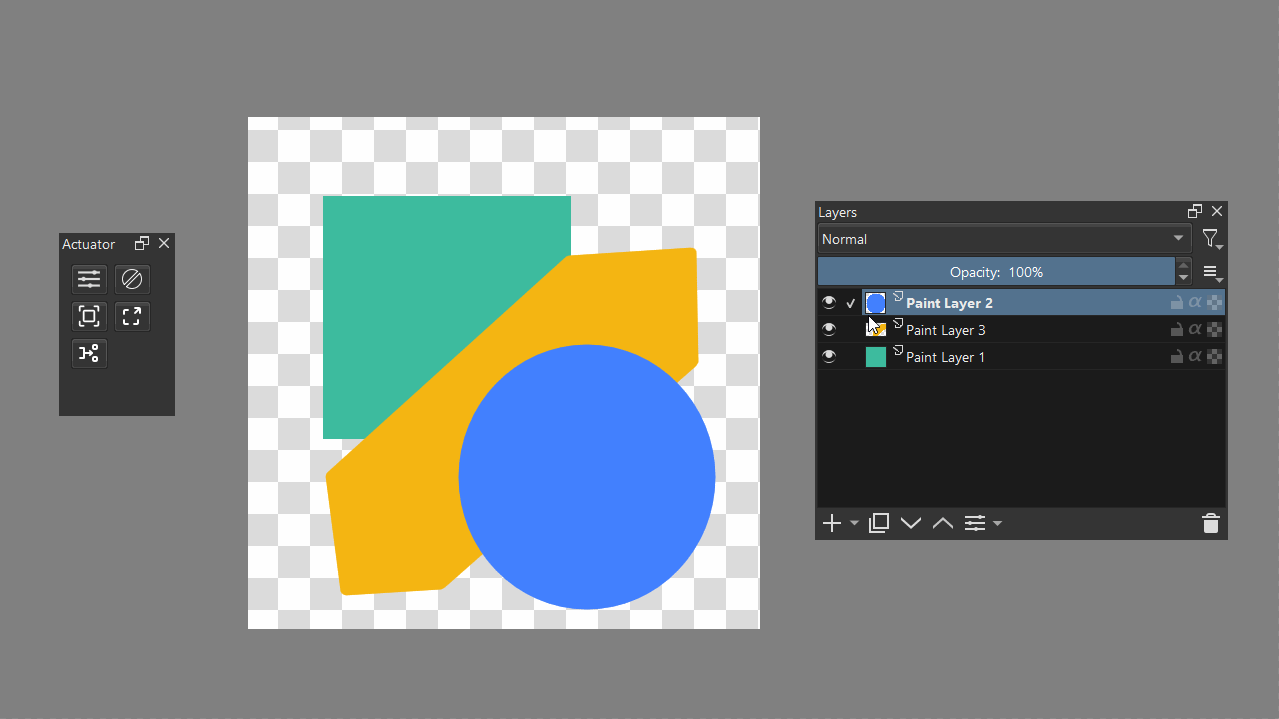

Here, how it will work:
ab-merge-keep-blending-mode

8

WOW, first of all, thank you for making the script available.

Now I’m coming to something new =)

It works so far except for the black, if you go there in the overlay and then combine the layer (8CTRL+E) then the black becomes dark black again and not so slightly transparent, is that normal?

Greetings
DAB

Ok, I have to correct it, it only works to a limited extent, not every one is adopted 1:1

1 Like
