Ok try this, an apology for the delay, my internet is crashing.

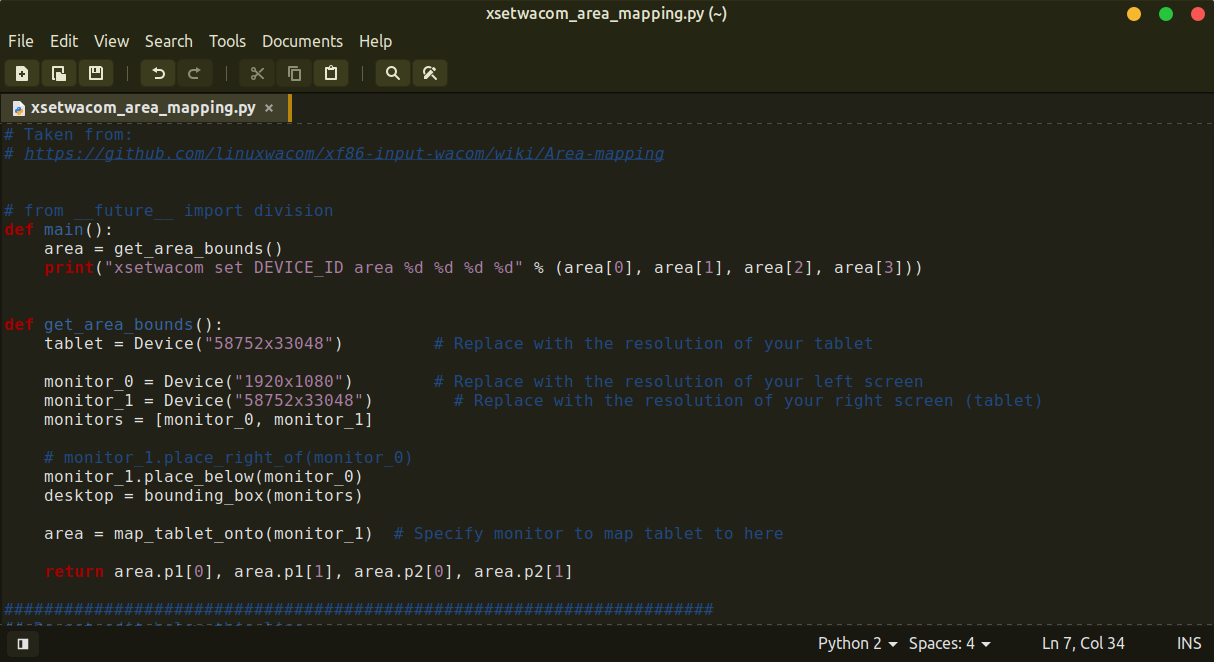

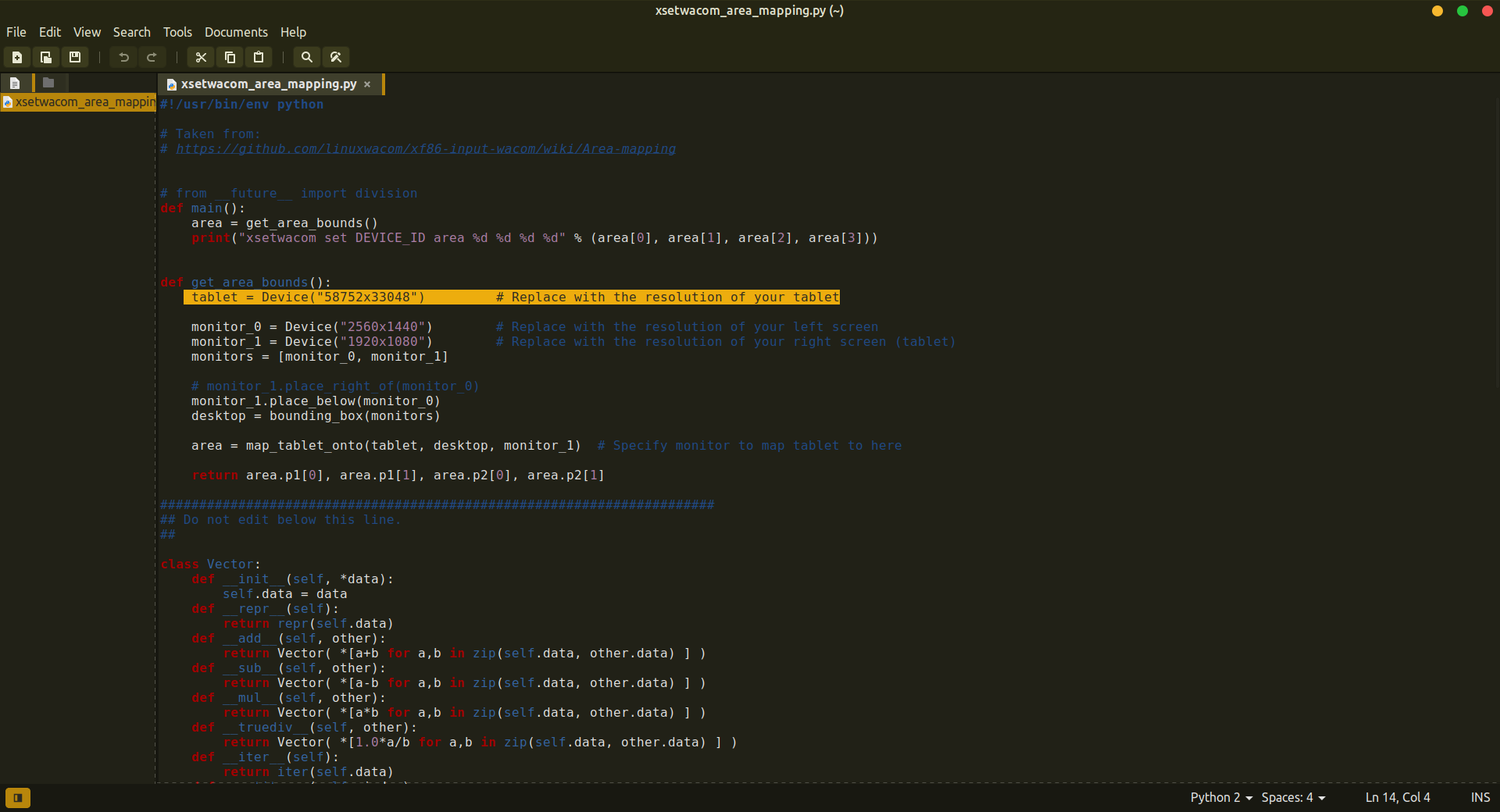

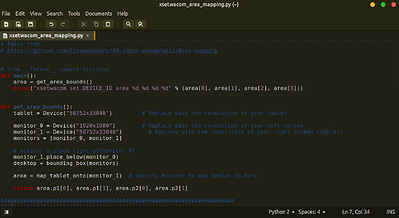

#!/usr/bin/env python
# Taken from:
# https://github.com/linuxwacom/xf86-input-wacom/wiki/Area-mapping
# from __future__ import division
def main():
area = get_area_bounds()

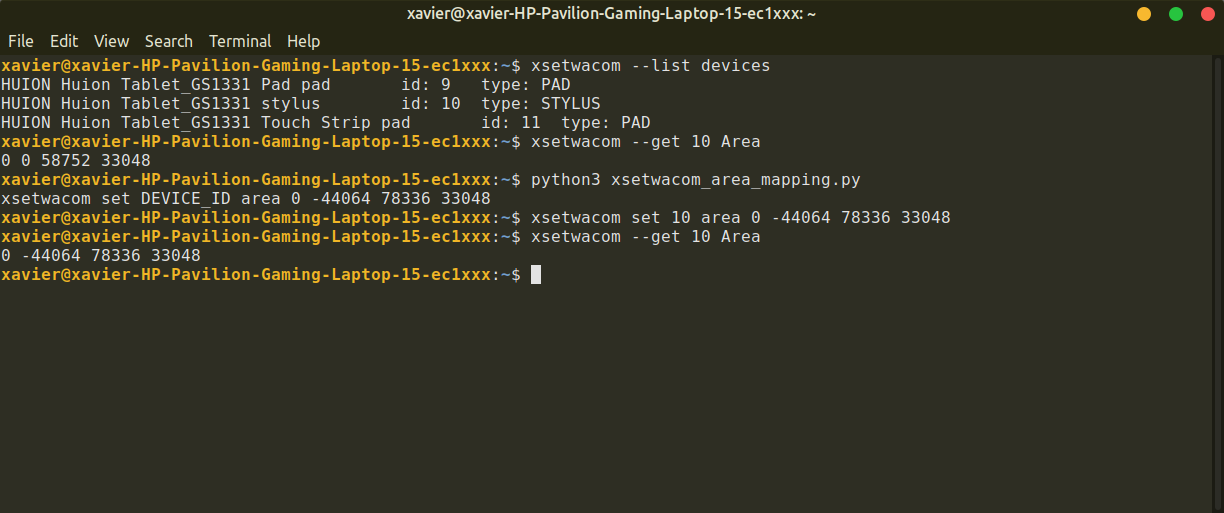

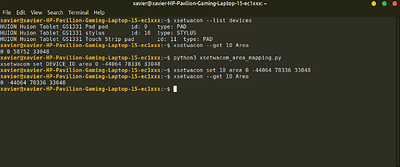

print("xsetwacom set DEVICE_ID area %d %d %d %d" % (area[0], area[1], area[2], area[3]))
def get_area_bounds():
tablet = Device("58752x33048") # Replace with the resolution of your tablet

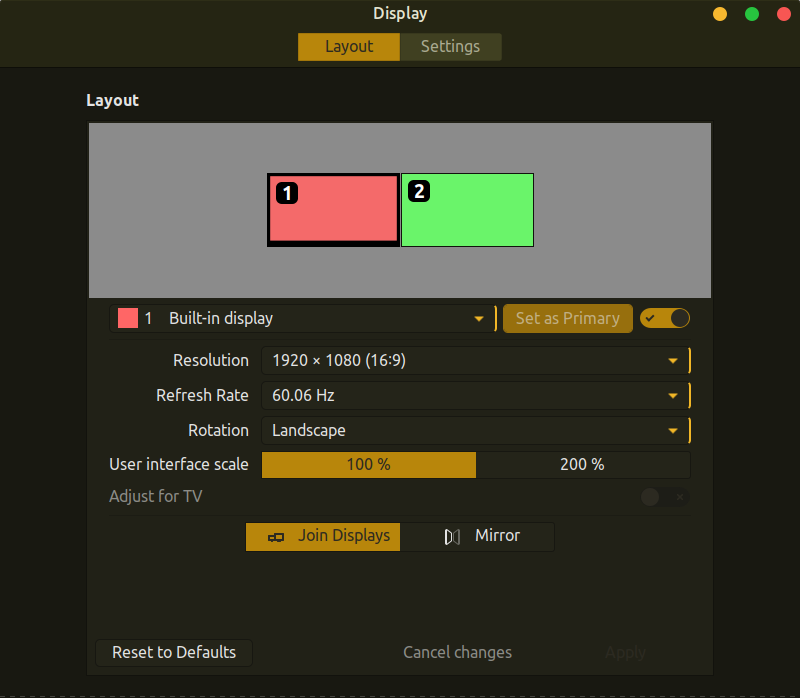

monitor_0 = Device("1920x1080") # Replace with the resolution of your left screen

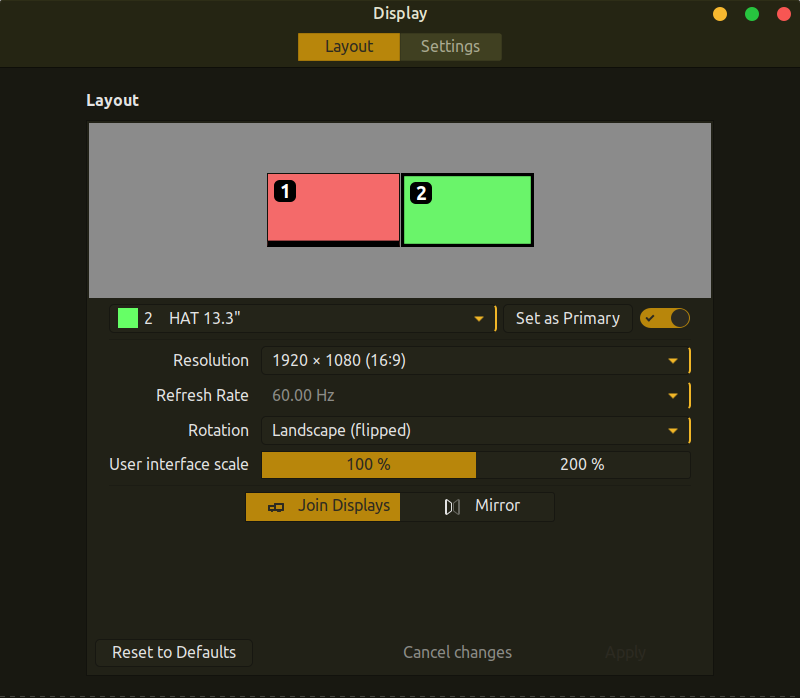

monitor_1 = Device("1920x1080") # Replace with the resolution of your right screen (tablet)
monitors = [monitor_0, monitor_1]
# monitor_1.place_right_of(monitor_0)
monitor_1.place_below(monitor_0)
desktop = bounding_box(monitors)
area = map_tablet_onto(tablet, desktop, monitor_1) # Specify monitor to map tablet to here
return area.p1[0], area.p1[1], area.p2[0], area.p2[1]
#######################################################################
## Do not edit below this line.
##
class Vector:
def __init__(self, *data):
self.data = data
def __repr__(self):
return repr(self.data)
def __add__(self, other):
return Vector( *[a+b for a,b in zip(self.data, other.data) ] )
def __sub__(self, other):
return Vector( *[a-b for a,b in zip(self.data, other.data) ] )
def __mul__(self, other):
return Vector( *[a*b for a,b in zip(self.data, other.data) ] )
def __truediv__(self, other):
return Vector( *[1.0*a/b for a,b in zip(self.data, other.data) ] )
def __iter__(self):
return iter(self.data)
def __getitem__(self, index):
return self.data[index]
class Rectangle:
def __init__(self, p1=(0,0), p2=(0,0)):
self.p1, self.p2 = Vector(*p1), Vector(*p2)
def __repr__(self):
return repr((self.p1, self.p2))
def __add__(self, point):
return Rectangle(self.p1 + point, self.p2 + point)
def __sub__(self, point):
return Rectangle(self.p1 - point, self.p2 - point)
def getSize(self):
return self.p2 - self.p1
def setSize(self, size):
self.p2 = self.p1 + size
def getOrigin(self):
return self.p1
def setOrigin(self, point):
self.p2, self.p1 = self.size + point, point
size = property(getSize, setSize)
origin = property(getOrigin, setOrigin)
class Device(Rectangle):
def __init__(self, resolution):
x, y = resolution.split("x")
Rectangle.__init__(self, (0,0), Vector(int(x), int(y)))
def place_right_of(self, other):
self.setOrigin(other.origin + Vector(other.size[0], 0))
def place_left_of(self, other):
self.setOrigin(other.origin - Vector(self.size[0], 0))
def place_above(self, other):
self.setOrigin(other.origin - Vector(0, self.size[1]))
def place_below(self, other):
self.setOrigin(other.origin + Vector(0, other.size[1]))
def bounding_box(rectangles):
points = [rect.p1 for rect in rectangles]
min_x = min([x for x,y in points])
min_y = min([y for x,y in points])
points = [rect.p2 for rect in rectangles]
max_x = max([x for x,y in points])
max_y = max([y for x,y in points])
return Rectangle((min_x, min_y), (max_x, max_y))
def normalize(desktop, monitor):
rect = Rectangle([ (monitor.p1 - desktop.p1)[i] / desktop.size[i] for i in [0,1] ])
rect.setSize(monitor.size / desktop.size)
return rect
def map_tablet_onto(tablet, desktop, monitor):
norm = normalize(desktop, monitor)
rect = Rectangle()
rect.setSize(tablet.size / norm.size)
rect.setOrigin ( tablet.origin - (rect.size * norm.origin) )
return rect
if __name__=="__main__":
main()
