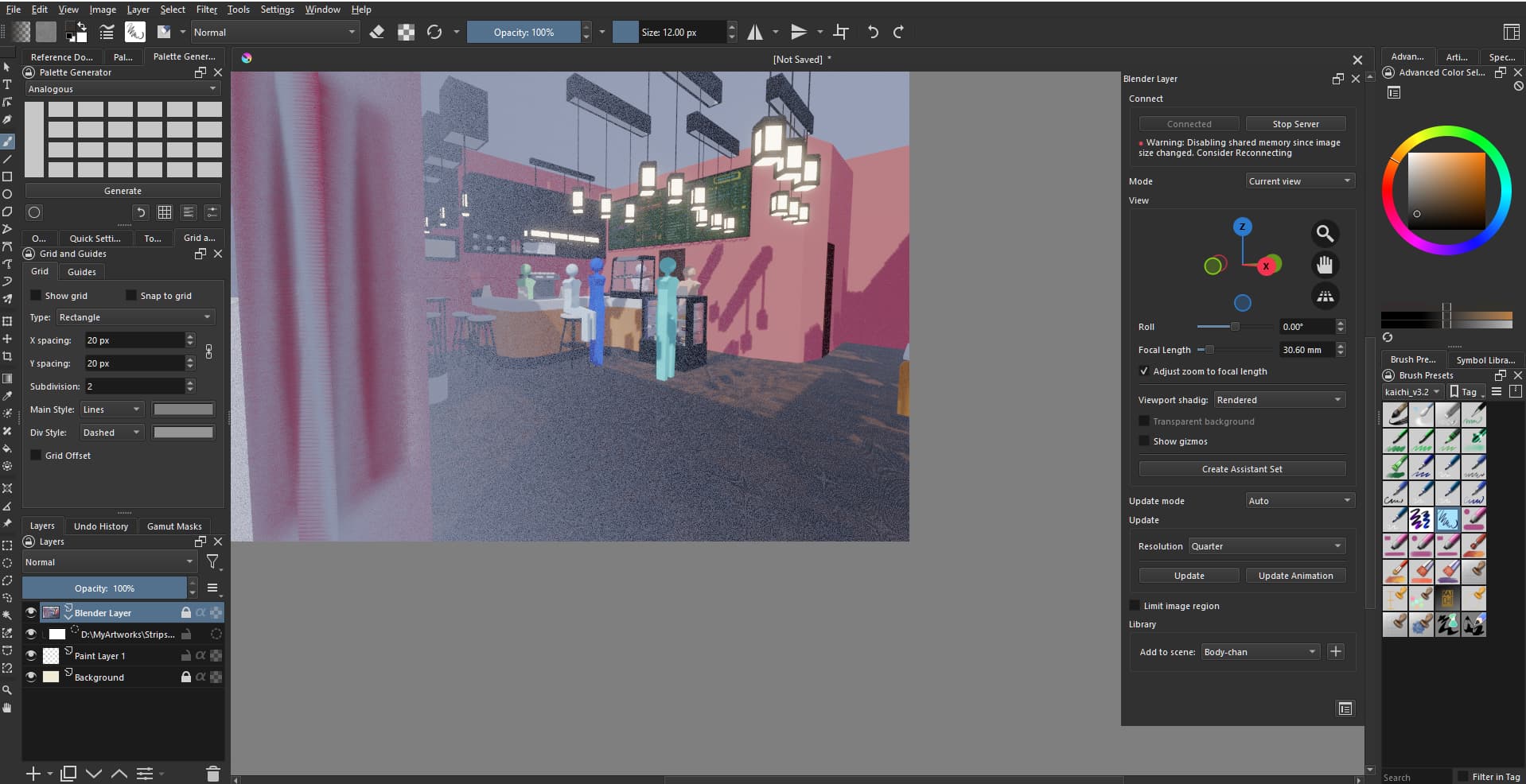

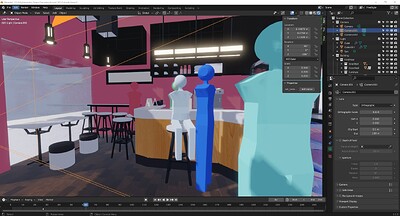

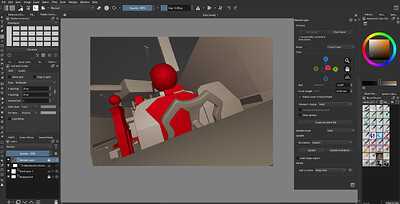

Blender Layer is a plugin that allows you to stream 3D View from Blender into Krita, behaving like a normal layer: You can trace over it, change the blending mode and even apply layer styles!
Poor performance for high resolutions and complicated scenes
Blender must be open in the background
Transparent background requires Blender 3.6.0 (Still in alpha at time of writing)
Cycles is only supported when doing a full render
Only tested on Windows and with recent versions of Krita/Blender
Probably still quite buggy, especially the animation features
Getting Started
Install Blender
Make sure the ‘Blender Layer’ add-on is installed and enabled in Krita
Open a document
Connect to Blender:
Drag and drop a .blend File into Krita. This will start Blender, connect and directly open the .blend file.
(You might be asked to select the path to the blender executable. Under Windows and Blender 3.4 for example select ‘C:\Program Files\Blender Foundation\Blender 3.4\blender.exe’)
Or use the ‘Start Blender’ button in the ‘Blender Layer’ Docker. This will start Blender with a fresh file and connect automatically.
(Advanced) Or manually install the companion add-on for Blender. Goto ‘Preferences → Add-Ons → Install…’ and select ‘blenderLayerClient.py’ from the blender_layer folder of the add-on. (Under Windows installed Krita add-ons can be found in ‘%APPDATA%\krita\pykrita’). In Krita, start the server from the docker, then in Blender from the header of a 3D View choose ‘View → Connect to Krita’ make sure host and port match the settings in Krita and press ok.
Navigation
Using the navigation widget in the docker:
Drag to rotate
Shift + Drag to pan
Ctrl + Drag vertically to zoom
You can also change the view from outside the docker with Alt + Middle Mouse Button.
Assistants

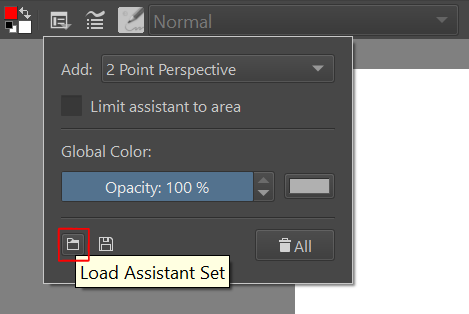

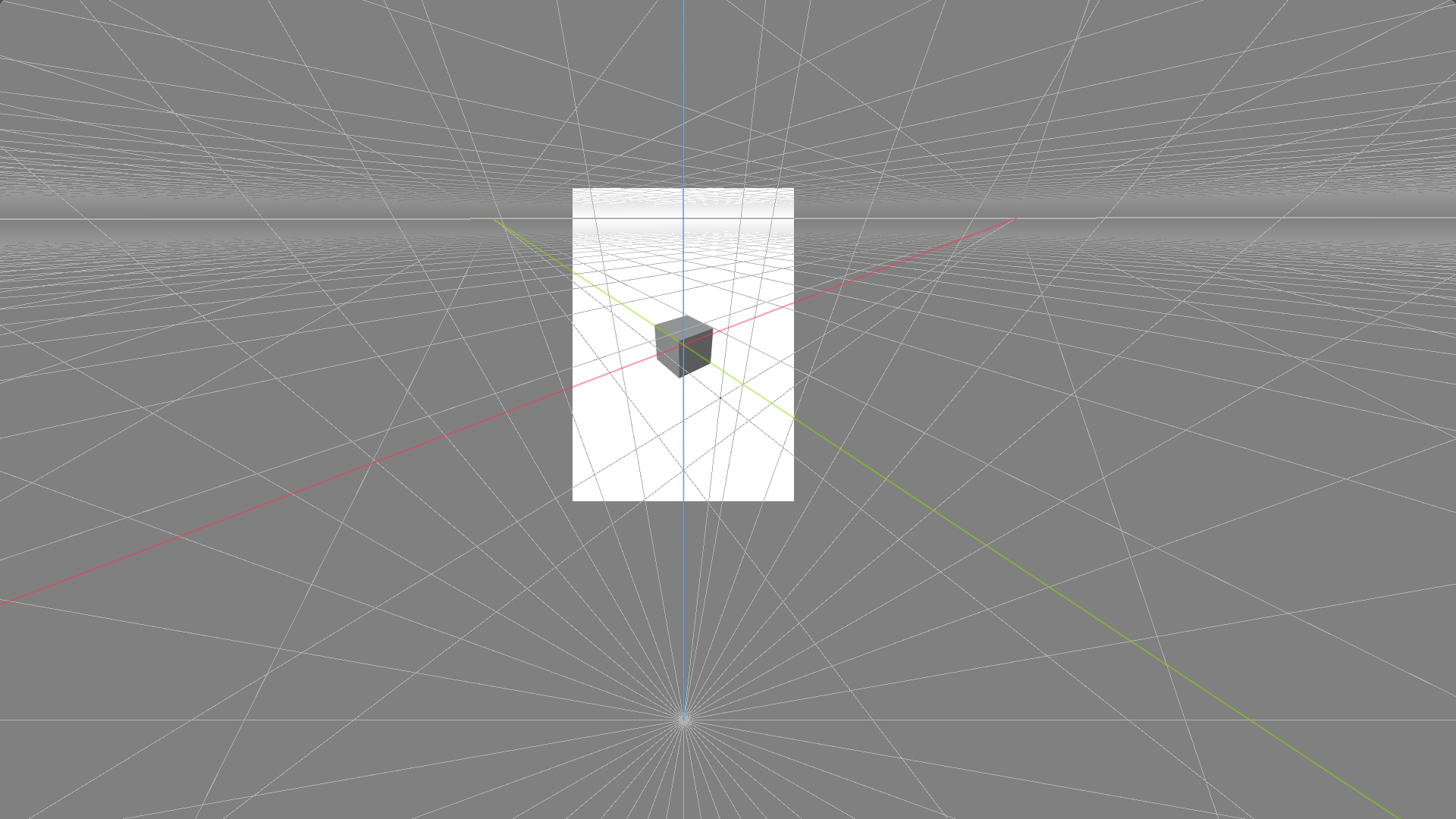

In order to create painting assistants matching Blender’s perspective use the ‘Create Assistant Set’ button in the docker. You will be asked to save an xml file. Make sure the assistant tool is selected, then open the Tool Settings and press the ‘Load Assistant Set’ Button (Folder icon) and select the file you have just created.
The colored axis can be disabled in settings.
The docker allows you to append a selection of objects to the current scene. By default, this includes posable mannequin models ‘Body-chan’ and ‘Body-kun’. (CC-0 License, created by vinchau).
You can configure additional objects from the settings menu by providing a .blend file and the path to objects within the file e.g. Object/Cube. (See Blender’s append function for reference)
Blender Layer also supports Blender’s asset based Pose Library. If your Blender file contains pose assets, these will show up in the ‘Library’ section of the docker and can be directly applied from within Krita.
Animation

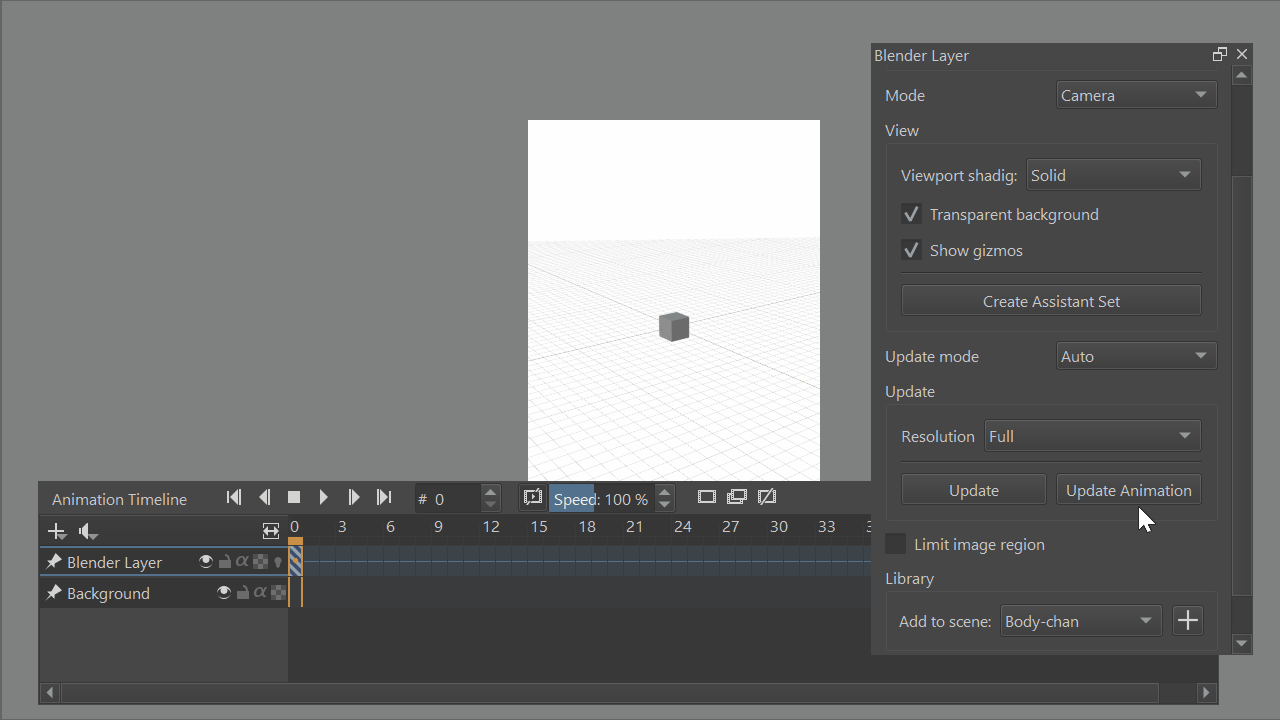

You can also directly import animations from Blender.
That looks awesome, I have not tested this yet but i performance is a thing I do not mind just rotating the scene in Blender only, maybe that could be optional when using large scenes.
Insane plugin, thanks for the implementation. The basic idea works. I had issues with new layers not showing up (and some other operations) until I save the doc.
It would be useful to have the camera sync from Blender as well.
The model that I use and the model that the plugin brings is not the same, that is to say the original one, yes, but the one from the plugin is modified and looks different from the one I use.
If you want to see the view in Krita update while in Blender, you can set the update mode to ‘Live’. This will update constantly though, even if nothing changed i.e., Blender might get a bit laggy, so this isn’t the default.
In auto mode it should update once Krita regains focus, if it doesn’t that’s a bug.
(Or did you mean setting the view to the current camera? You can do that by changing the mode to ‘Camera’)
Other operations not working sounds pretty annoying, can you reproduce that reliably? I had that once when updating the animation, but I thought I fixed that
Yeah, probably some programming listening for the same port. I chose the default port pretty much at random, so maybe it happened to be a common one.
You can try changing the port in the settings (Button at the bottom of the docker). If that doesn’t fix it, maybe it’s be a firewall/VPN thing?
It definitely is a port - dont worry about it [my system fault]. Pretty sure it just conflicted with something I’m using [i have quite a number of port use earlier since doing some work]
thank you for telling where to change it.
BTW . it’s amazing. I was looking for something like this. [i’m tearing up how fantastic this is]
